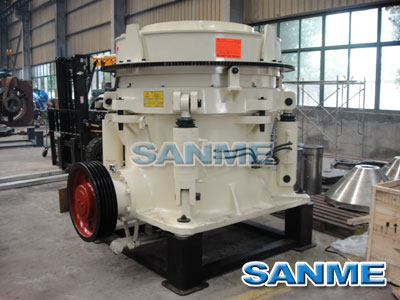

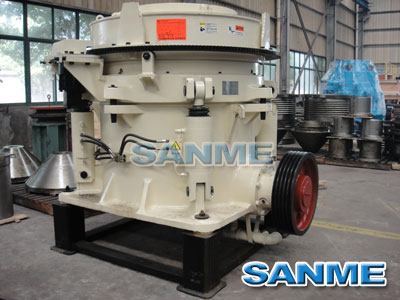

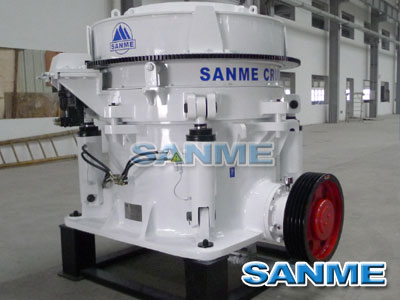

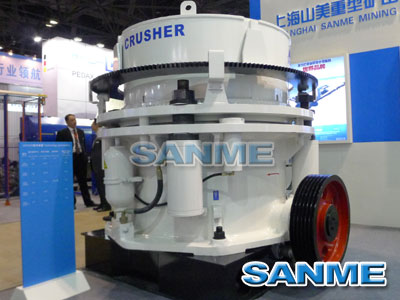

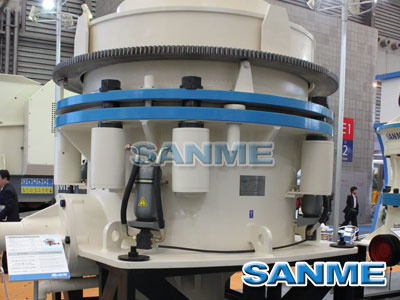

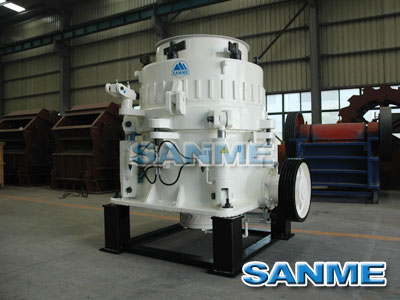

SMH Series Cone Crushers

SMH Series Cone Crushers are manufactured and designed through absorbing the latest world advanced technology and gets to be world advanced level. It is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks. SMH Series Hydraulic Cone Crusher is of high performance, The optimized design of stroke, rotate speed and crushing cavity achives the effect of grinding, which increases the productivity and improves product shape.

Download Product Document

SMH Series Cone Crushers SMH Series Cone Crushers SMH Series Cone Crushers SMH Series Cone Crushers SMH Series Cone Crushers SMH Series Cone Crushers

Products Information

Feature and Advantage:
SMH Series Cone Crushers possesses greater superiority than ordinary ones.

1. Larger crushing ratio, high production efficiency, high capacity and excellent product shape.
Crushing ratio and production efficiency is greatly improved as the increase of rated power and capacity with the effort of the combined higher rotate speed and reasonable stroke.

2.Rational construction, advanced crushing principle and technical data, reliable operation and low cost.
All components of crusher are protected by wear resistant materials, which reduces the maintenance cost and increace service life by almost 30%.

3.Lamination crushing principle, excellent product shape:
A prominent increase in fine material ratio and cubic product content, and massive decrease of elongated flaky particle are achieved through selective crushing of material, which results from the replacement of single-particle crushing chamber by special inter-particle-grinding crushing cavity.

4.Shorter down time
Sanme cone crusher adopts hydraulic bolt and overload protecting system, which release the impact force gently when uncrushable material is fed into the cavity and revert to original position after material discharged. The brand-new hydraulic cylinders can discharge the material when the machine stops with load. Hydraulic cone crusher has the advantages of safer, more convenient and shorter down time compared with traditional spring type cone crusher.

5.Thin oil lubricating: reliable, advanced and increases its service life.
Unique oil lubricating system increases the longevity of machine. Non-contact labyrinth sealing element is of high performance, which improves the reliability of dust resisting and fundamentally eliminates the problems caused by oil water mixture appeared in spring type cone crusher.

6.Various crushing cavities meet wide range of product size requirements.
By replacing the mantle and concave plate, the crushing cavity is adjustable, from standard coarse type to short-headed fine type, which meets large range of size requirements.

7.Easy maintenance and operation.
All parts of SMH SMH Series Cone Crushers can be assembled, disassembled and repaired from the top and side part, including the fixed cone and movable cone. It is no need to disassemble and install the frame, and fasten bolts, so SMH cone crusher is much more convenient and fast for replacing liner plates. The crusher production efficiency will be much better by using the hydraulic motor.

8.Padding free in mantle and concave changing.
SANME hydraulic cone crusher adopts new fixing method of mantle and concave, which is padding free and less time consuming.
