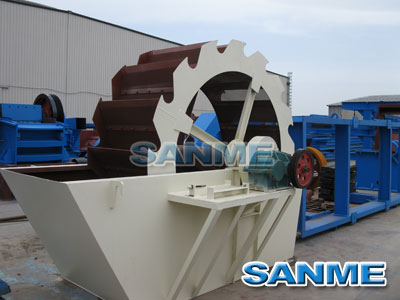

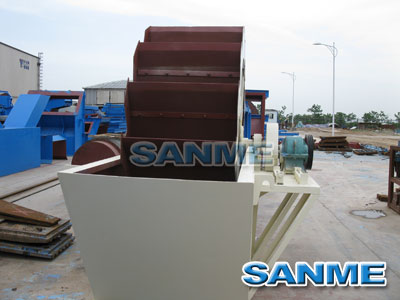

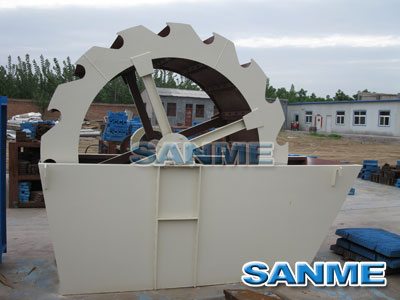

Wheel Sand Washer

XS Series Sand Washer is a bucketed sand washer, mainly used to washing and drying building material and can wash and separate the stone powder and soil in the sand. Its novel sealed structure and reliable gearing ensure the washing and dewatering effects. It is a high-efficient equipment for sand washing coordinated with sand maker and is widely used in construction plant, gravel factory, hydropower station, concrete dam sites and other industries.

Download Product Document

Wheel Sand Washer Wheel Sand Washer Wheel Sand Washer Wheel Sand Washer Wheel Sand Washer Wheel Sand Washer

Products Information

XS Series Sand Washer has the characteristics of high cleaning degree, reasonable structure, high output, lower power consumption and fewer sand lost in washing process. The transmission parts of sand washer are isolated from water and sand, which makes the fault rate much lower than that of the sand washer in common use at present.It

Working Principle:

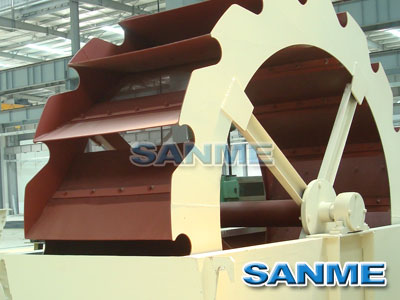

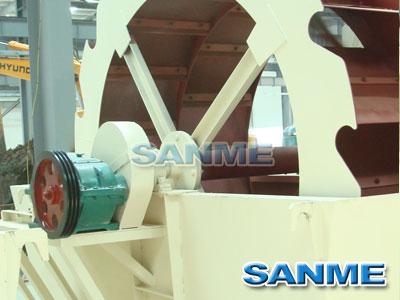

At working time, the electric motor drives the impeller run slowly through the v-belt, decelerator and gear wheel. The gravel flows into washing launder from the feeding launder, rolls with the impeller and grinds each other to rid impurities and destroy water vapour layers cladding on the gravel. Meanwhile, add more water,and the strong water flow will take away impurities and some low-weight wastes from the washing launder to the overfall washing launder. Through the above process, the washing function is finished. Clean sand and stone will be taken away by vanes and poured into the discharging launder from the revolving impeller to finish the washing function.

The Sand Washer is widely used in gravel plant, mine, building material, transportation, chemical industry, hydropower station, concrete mixing plant and so on for washing and screening materials.

Performance Features:
1.Reasonable structure. The impeller drive bearing is isolated from water and materials buried in washer, which greatly avoid the bearing damaged because of soaking in water,sand and other pollutants;
2.Extremely rare lost of medium and fine sand, the grading and fineness module of washed building sand have achieved two national standards" sand for building" and" cobble and gravel for building"
3.Almost no wear parts except for the sieve mesh of sand washer;
4.High output and low power consumption;
5.Longer service life and convenient maintenance;
6.Save water resource;
7.No pollution and high cleaning degree.
