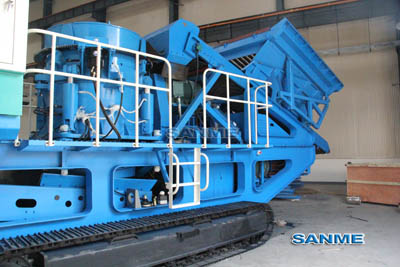

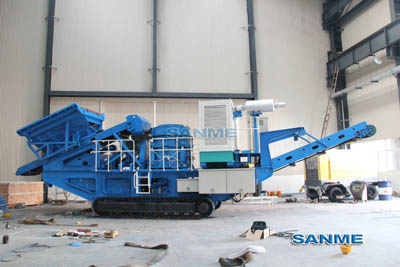

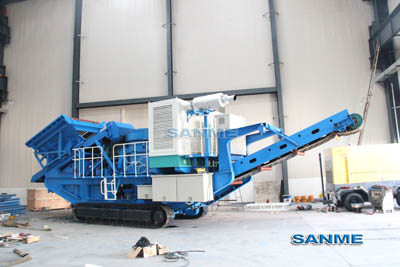

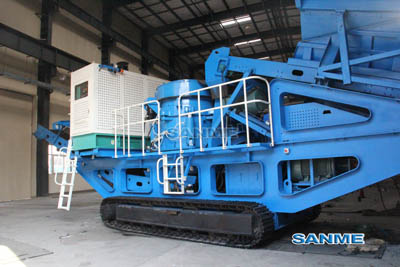

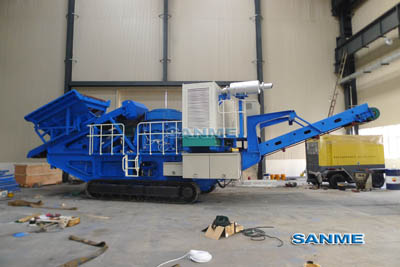

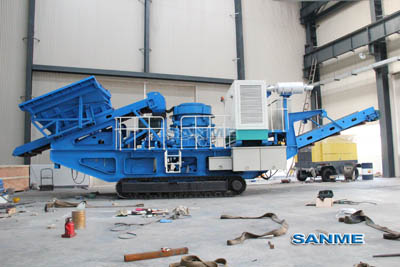

Designed and manufactured with German technology, MP-C Series Mobile Cone Crushing Plants have reached the world advanced level. The plant adopts first level mobile crushing technique, which fully meets the customers' requirement of high mobility, high crushing efficiency and optimizes your business mode.
MP-C Series Mobile Cone Crushing Plants are applicable for:
1.Minerals and Hard rock CrushingMain Technical Data:
|
MP-C Series Mobile Cone Crusher Plants |
MP-C120 |
MP-C180 |
MP-C250 |
|
Cone Crusher |
SMH120 |
SMH180 |
SMH250 |
|
Max Feed Size (mm) |
160 |
180 |
260 |
|
Gap Width (mm) |
9-32 |
9-32 |
9-51 |
|
Crushing Capacity (t/h) |
up to 150 |
up to 200 |
up to 350 |
|
Driving Unit |
|||
|
Engine |
Cummins or CAT |
Cummins or CAT |
Cummins or CAT |
|
Performance（kw） |
261 |
261 |
400 |
|
Feed Hopper |
|||
|
Hopper Volume（m3） |
4 |
5 |
6 |
|
Belt Feeder |
|||
|
Drive |
hydraulic |
hydraulic |
hydraulic |
|
Main Conveyor belt |
|||
|
Discharge Height（mm） |
2900 |
3300 |
3300 |
|
Drive |
hydraulic |
hydraulic |
hydraulic |
|
Crawler Unit |
|||
|
Drive |
hydraulic |
hydraulic |
hydraulic |
|
Dimensions and Weight |
|||
|
Working Dimensions |
|||
|
-Length (mm) |
13767 |
13850 |
14530 |
|
-Width (mm) |
3621 |
3650 |
4150 |
|
-Height (mm) |
4497 |
4550 |
4720 |
|
Transport Dimensions |
|||
|
- Length (mm) |
14273 |
14320 |
14900 |
|
- Width (mm) |
3543 |
3570 |
3640 |
|
- Height (mm) |
4024 |
4050 |
4130 |
|
Weight (t) |
37 |
39.5 |
49 |
Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
