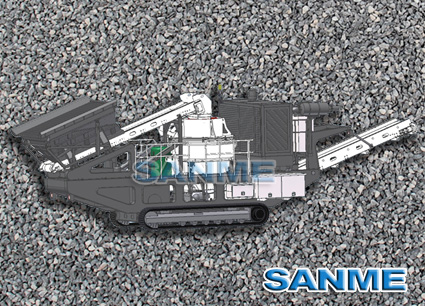

MP-VSI Series Mobile VSI Crushing Plants

Designed and manufactured with German technology, MP-VSI Series Mobile VSI Crushing Plants has reached the world advanced level. The plant adopts first level mobile crushing technique, which fully meets the customers' requirement of high mobility, high crushing efficiency and optimizes your business mode.

Download Product Document

Media

Products Information

MP-VSI Series Mobile VSI Crushing Plants is applicable for:

1.Minerals and hard rock crushing
2.Make sand and aggregate shaping

Main Technical Data:

MP-VSI Series Mobile VSI Crushing Plants	MP-VSI 5000	MP-VSI 6000	MP-VSI 7000
VSI Crusher	VSI 5000	VSI 6000	VSI 7000
Max Feed Size(mm)	65	70	70
Crushing Capacity(t/h)	80-150	120-250	180-350
Driving Unit
Engine	Cummins or CAT	Cummins or CAT	Cummins or CAT
Performance(kw)	400	480	550
Feed Hopper
Hopper Volume（m3）	4	6	6
Belt Feeder
Drive	hydraulic	hydraulic	hydraulic
Main Conveyor belt
Discharge Height（mm）	2900	3300	3300
Drive	hydraulic	hydraulic	hydraulic
Crawler Unit
Drive	hydraulic	hydraulic	hydraulic
Dimensions and Weight
Working Dimensions
-Length (mm)	13767	13940	13940
-Width (mm)	3621	3820	3920
-Height (mm)	4425	4980	4980
Transport Dimensions
- Length (mm)	14273	14320	14320
- Width (mm)	3543	3751	3851
- Height (mm)	4024	4130	4330
Weight (t)	38	43	47

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
