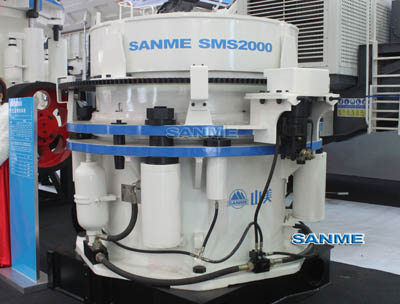

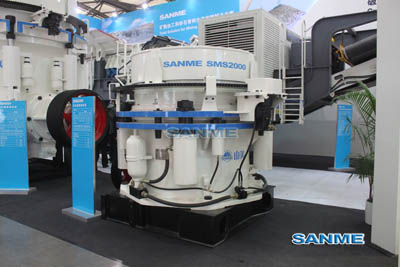

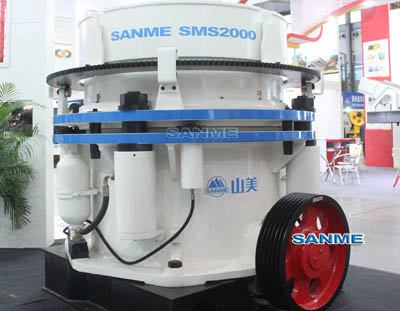

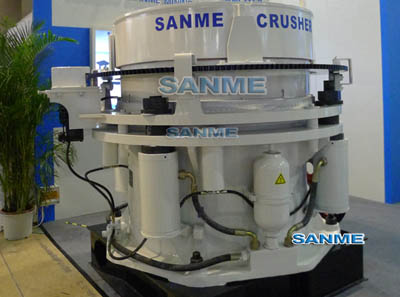

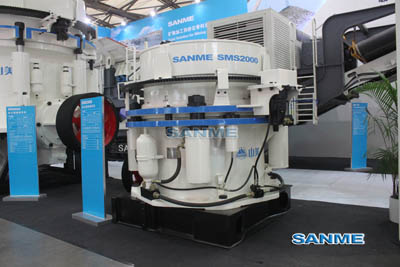

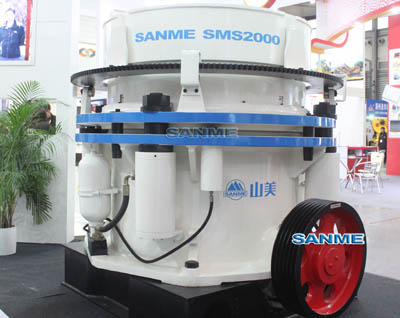

SMS Series Cone Crusher

SMS Series Cone Crusher Products Information

Working principle:

SMS series fully hydraulic cone crusher is consist of main frame, drive shaft, eccentric, socket liner, crushing body, adjusting device, adjusting sleeve, lubrication system and hydraulic system.
When the crusher working, the motor drives the eccentric rotating through the drive shaft and a pair of bevel gear, cone axis does rotary pendulum movement under the force of eccentric sleeve , which makes the mantle surface sometimes near the concave, sometimes far from the concave, so that the ore in the crushing cavity is continually squeezed and being broken.
The material enter into the crusher from the upper feed opening, by crushing can be discharged from the bottom discharge opening.

Products features and technology advantages:

1.The new series cone crusher adopts the international advanced technology, and with superior performance.
2.The design of fixed shaft and the optimized crushing cavity improve the crushing capacity wholly.
3.The composition of product size is more stable, and the shape is better.
4.The full hydraulic standard configuration, simple operation, flexible adjustment.
5.The independent single- cylinder design makes the system performance stable.
6.The new integrated base simplify the installation steps.
7.Improve the shape structure, setting the function and aesthetics in one.

Main Technical Data:

Model	Max Feed Size(mm)	Discharge Range(mm)	Motor Power(kw)	Capacity (t/h) —— open circuit, closed discharge(mm)
				6	9	13	16	19	22	26	32	38	45	51
SMS2000C	185	22~38	160						180	195	210	225
SMS2000M	135	16~32					118	140	163	182	200
SMS2000F	95	13~26				95	115	135	160	180
SMS2000DC	76	10~22	160		75	90	105	125	155
SMS2000DM	54	9~19			75	90	105	120
SMS2000DF	25	6~16		60	78	95	115
SMS3000EC	235	26~51	220							230	270	320	370	400
SMS3000C	211	22~45							210	225	260	310	360
SMS3000M	150	16~38					155	175	200	220	260	295
SMS3000F	107	13~32				110	135	165	195	225	250
SMS3000DC	78	10~22	220		105	130	160	185	210
SMS3000DM	53	9~19			102	125	155	180
SMS3000DF	25	6~16		90	105	125	150
SMS4000EC	299	32~51	315								366	420	480	520
SMS4000C	235	26~51								295	350	390	415	475
SMS4000M	199	22~45							266	305	338	363	395
SMS4000F	135	16~38					198	210	245	275	305	330
SMS4000DC	95	13~26	315			180	205	235	265	290
SMS4000DM	76	10~22			145	180	205	230	260
SMS4000DF	45	6~19		120	145	175	200	220
SMS5000EC	335	32~51	400								460	560	615	680
SMS5000C	275	26~51								395	475	540	595	630
SMS5000M	210	22~45							340	385	462	515	560
SMS5000F	150	16~38					285	305	330	365	437	495
SMS5000DC	102	13~26	400			230	280	340	375	410
SMS5000DM	76	10~22			175	215	270	330	355
SMS5000DF	45	6~19		145	170	210	265	325
