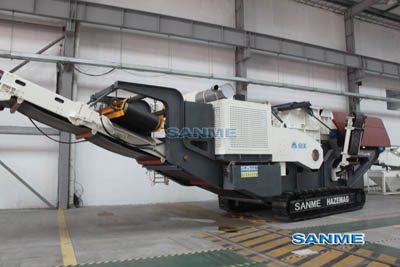

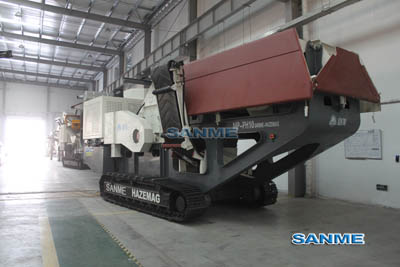

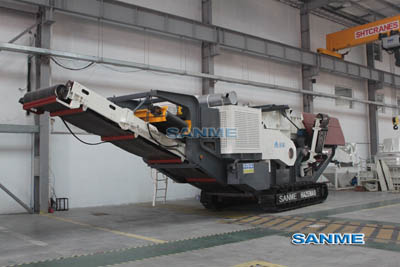

MP-PH Series Mobile Impactor Plants

SANME-HAZEMAG MP-PH Series Mobile Impactor Plant is designed by HAZEMAG Germany, it is an all-purpose, compact and modular impact crushing plant for aggregates and recycling industries.

Download Product Document

Media

Products Information

MP-PH Series Mobile Impactor Plant has the innovative features as follows:

1.The vibration feeder is fitted with a two-deck grizzly section for an optimum pre-scaling, thus maximizing the total performance and reducing wear.
2.The material, which has already the required grain size, is conveyed via a bypass past the impact crusher directly to the discharge chute. Thus the efficiency of the complete plant is increased.
3.The MP-PH crushing plant is fitted with the field-tested HAZEMAG impact crusher AP-PH-A. The hydraulic controlled impact crusher guarantees a constant product quality and a high availability.

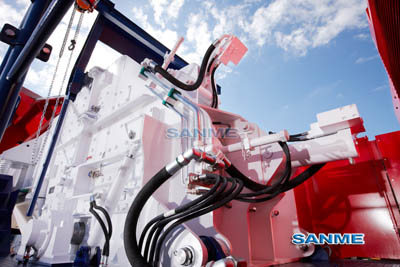

4.The active hydraulic permit a trouble free material flow via the movable inlet plate of the impact crusher.
5.The diesel-direct drive in combination with a CATERPILLAR motor allows for a maximum performance at a small amount of space.

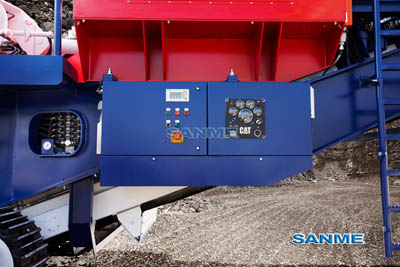

6.The processing plant is easy to operate with the remote control.
7.Magnetic separator, lateral discharge belt and water spray system are optionally available as approved HAZEMAG modules.
8.For the optimization of performance and availability the mobile processing plant is operated by an intelligent control in the background.

Features and Technology Advantages:

1.The reliable processing plant MP-PH carries on the advanced HAZEMAG technology concept. It can be optimally used as a primary crushing plant, the optional high-performance magnet allows for an efficient employment in the recycling industry. The plant is eminently suitable for the processing of blasted natural stone and provides an excellent final grain size.
2.The MP-PH crushing plant impresses with a robust and functional design in a sturdy constructive form, and simultaneously can be operated economically.
3.Both the dynamic control system and the optimized crushing cavity geometry of MP-PH crushing plant ensure maximum throughput continuity and a homogenous final grain size.
4.SANME-HAZEMAG MP-PH Series Mobile Impactor Plant, the cost of which has been thoroughly optimized, convinces by its stability, wear cost which are considerably below average, long maintenance intervals and minimum set-up times.
5.SANME-HAZEMAG MP-PH Series Mobile Impactor Plant is one of the most economical impact crushers of its class; it is a truly world-class product.
All in all the SANME-HAZEMAG MP-PH Series Impactor Plants convince by a flexible applicability, it processes limestone, reinforced concrete, bricks and asphalt with the directly driven HAZEMAG impact crusher into high-quality final grain sizes. An excellent mobility, a high performance at a comparably low weight and an efficient drive permit a remarkable economic crushing.

Main Technical Data:

MP-PH Series Mobile Impactor Plants	MP-PH 10	MP-PH 14
Impact crusher	AP-PH-A 1010	AP-PH-A 1414
Feed opening size(mm×mm)	810×1030	1025×1360
Max feed size(m3)	0.3	0.5
Max edge length in one direction(mm)	800	1000
Crushing capacity(t/h)	up to 250	up to 480
Drive	diesel-direct	diesel-direct
Driving Unit
Engine	CAT C9	CAT C18
Performance (kw)	242	470
Feed hopper
Hopper volume(m3)	4.8	8.5
Grizzly feeder with pre-screening(two-deck)
Drive	hydraulic	hydraulic
Main conveyor belt
Discharge height(mm)	3100	3500
Drive	hydraulic	hydraulic
Side conveyor belt (option)
Discharge Height(mm)	1900	3500
Drive	hydraulic	hydraulic
For transportation the head-piece can be folded
Crawler unit
Drive	hydraulic	hydraulic
Permanent magnetic separator
Magnetic separator	option	option
Dimensions and weight
Working dimensions
-length (mm)	14600	18000
-width (mm)	4500	6000
-height (mm)	4200	4800
Transport dimensions
- length (mm)	13300	17000
- width (mm)	3350	3730
- height (mm)	3776	4000
Approx weight (t)	43	70

Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
